Graco’s G5 Pump Series

For demanding lubrication applications, professionals turn to Graco’s durable and reliable G5™ automatic grease & oil pumps. These pumps handle changing temperatures and challenging grease types with ease.

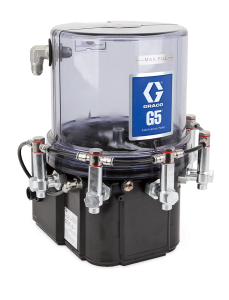

G5 Lubrication Pumps

Five-Point Simplicity

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simpler grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.

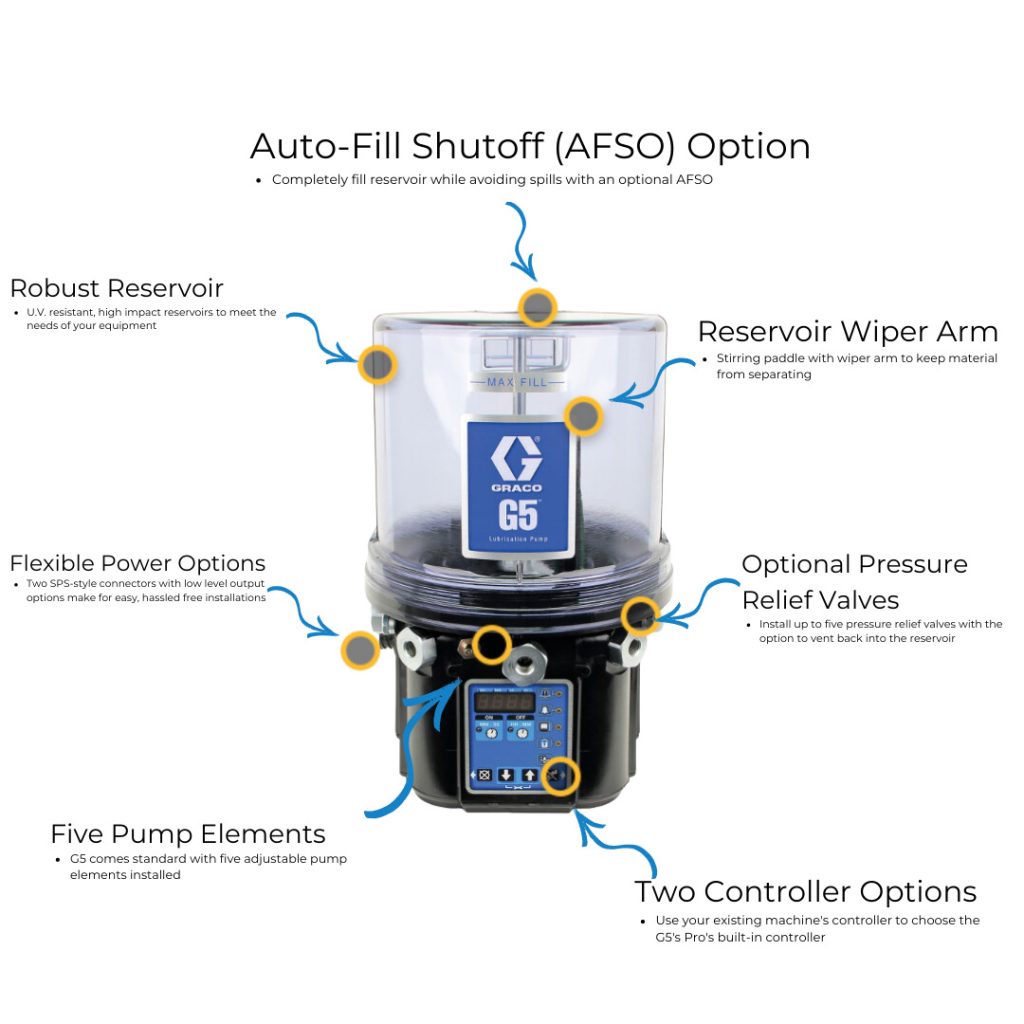

Five Pump Elements
G5 comes standard with five adjustable pump elements installed

Robust Reservoir
U.V. resistant, high-impact reservoirs to meet the needs of your equipment

Flexible Power Options
Two CPC-style connectors with low-level output options make for easy, hassle-free installations

Auto-Fill Shutoff Option
Completely fill the reservoir while avoiding costly spills with an optional AFSO

Reservoir Wiper Arm
Stirring paddle with wiper arm to keep material from separating

Optional Pressure Relief Valves
Install up to five pressure relief valves with the option to vent back into the reservoir

Two Controller Options
Use your existing machine’s controller or choose the G5 Pro’s built-in controller

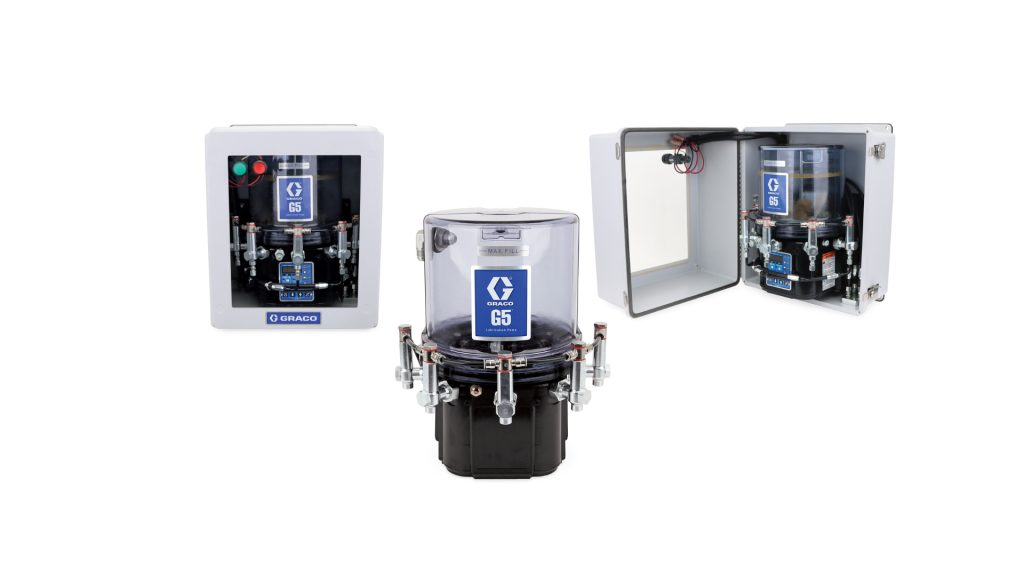

Offered either as a standalone pump or within an enclosure, the Graco G5 can be customized to meet your application standards. Enclosures are available in two sizes- the larger can house an optional auto-fill shutoff (AFSO) and pressure relief valves (PRV) whereas the smaller enclosure can house just PRV’s with the pump.

Specifications

  • Max Pressure: 4,250 psi (293 bar)
  • Power: 24 VDC
  • Operating Temperature: 40°F to 158°F (-40°C to 70°C), depending on lubricant used
  • Reservoir Size: 4 and 8 liter (Encolosures fir 4 liter only)
  • Maximum Run Time: 30 Minutes
  • Control Options: Standard (no controller) or Pro (timer)
  • Adjustable Pump Output Per Element Per Minute: 0.155 in3 (2.54 cm3 ) [no shim] 0.104 in3 (1.70 cm3 ) [1 shim] 0.055 in3 (0.90 cm3 ) [2 shims]
  • Enclosure Dimensions (LxWxH): Small – 17.75 in x 14.94 in x 13.00 in (45 cm x 38 cm x 33 cm) Large – 22 in x 17 in x 18 in (56 cm x 44 cm x 46 cm)
  • Certifications/Ratings: CE, UKCA
  • Instruction Manual: Standard – 3A8847 / Pro – 3A8848 / Pro with Enclosure- 3A9275
